M-TEC Sheep Decks
Easy Load Decks
M-TEC sheep decks are designed with simplicity and efficiency in mind.
Putting the decks out or away again is quick and hassle-free, making loading and unloading livestock easier than ever.
The foot-operated ramp allows for smooth, hands-free use, saving time and effort.
When the decks are not in use, they conveniently fold flat against the sides of the trailer. The support bars are securely held at the front by the top ramp, ensuring everything stays firmly in place during transport
M-TEC Sheep Decks
-
3.5Tonne coupling
-
Parabolic suspension
-
Side access doors
-
Fully fitted chequered flooring
-
LED lighting
-
175x75x16 Tyres
-
Strong aluminium loading gates
-
Interior dividing gate hangers
-
Spare wheel and bracket
-
Front fold down flap
-
Open side vents
-
Plastic mudguards (12FT)
-
Aluminium mudguards (14FT)
-
Bottom Sheep dividing gate
-
Sheep Decks
Anti Slip
Sheep Deck Door Option
One common concern during livestock loading is the shine on the metal ramps, which can make animals hesitant and loading more difficult.
We have now introduced an anti-slip tail door - providing better grip, reducing glare, and improving safety for both livestock and handers
SEE IT IN ACTION..
PRODUCT FEATURES
Optional M-TEC Safety bar allows for ease of access to and from the trailer.
Spare wheel and bracket included as standard
Bottom dividing gate included with sheep decks and dividing gate hanger
Sheep deck folded and stored either side of the trailer when not in use.
110mm oval strong aluminium loading gates
Overhead stop tail and direction indicator that remains visable at all times when in traffic.
Top ramp stored at the front of the trailer with suction cups to minimise any noise in transit and additional clips either side to keep in place when travelling with livestock

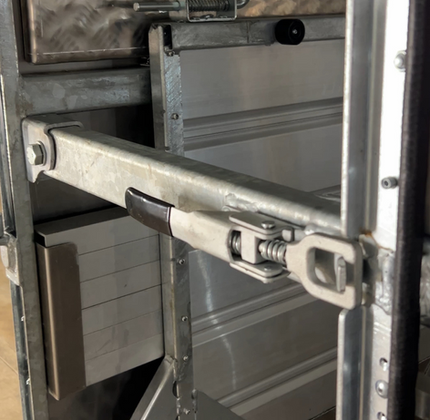

Lock and unlock the sheep deck ramp system by foot
SPECIFICATIONS
Model | Imperial Size | Tyres | Gross Weight | Unladen Weight | Internal Lenght | Internal Width | External Lenght | External Width | Total Head Room | Top Deck Head Room | Bottom Deck Head Room | Axles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
LV_14x63D | 14FT x 6FT | 175x75x16 | 3500KGS | 1545KGS | 4240mm | 1850mm | 5500mm | 2311mm | 1889mm | 939mm | 838mm | 3 |
LV_12x63D | 12FT x 6FT | 175x75x16 | 3500KGS | 1445KGS | 3615mm | 1850mm | 4964mm | 2311mm | 1889mm | 939mm | 838mm | 3 |
LV_12x62D | 12FT x 6FT | 175x75x16 | 3500KGS | 1340KGS | 3615mm | 1850mm | 4964mm | 2311mm | 1889mm | 939mm | 838mm | 2 |
